首頁產品中心

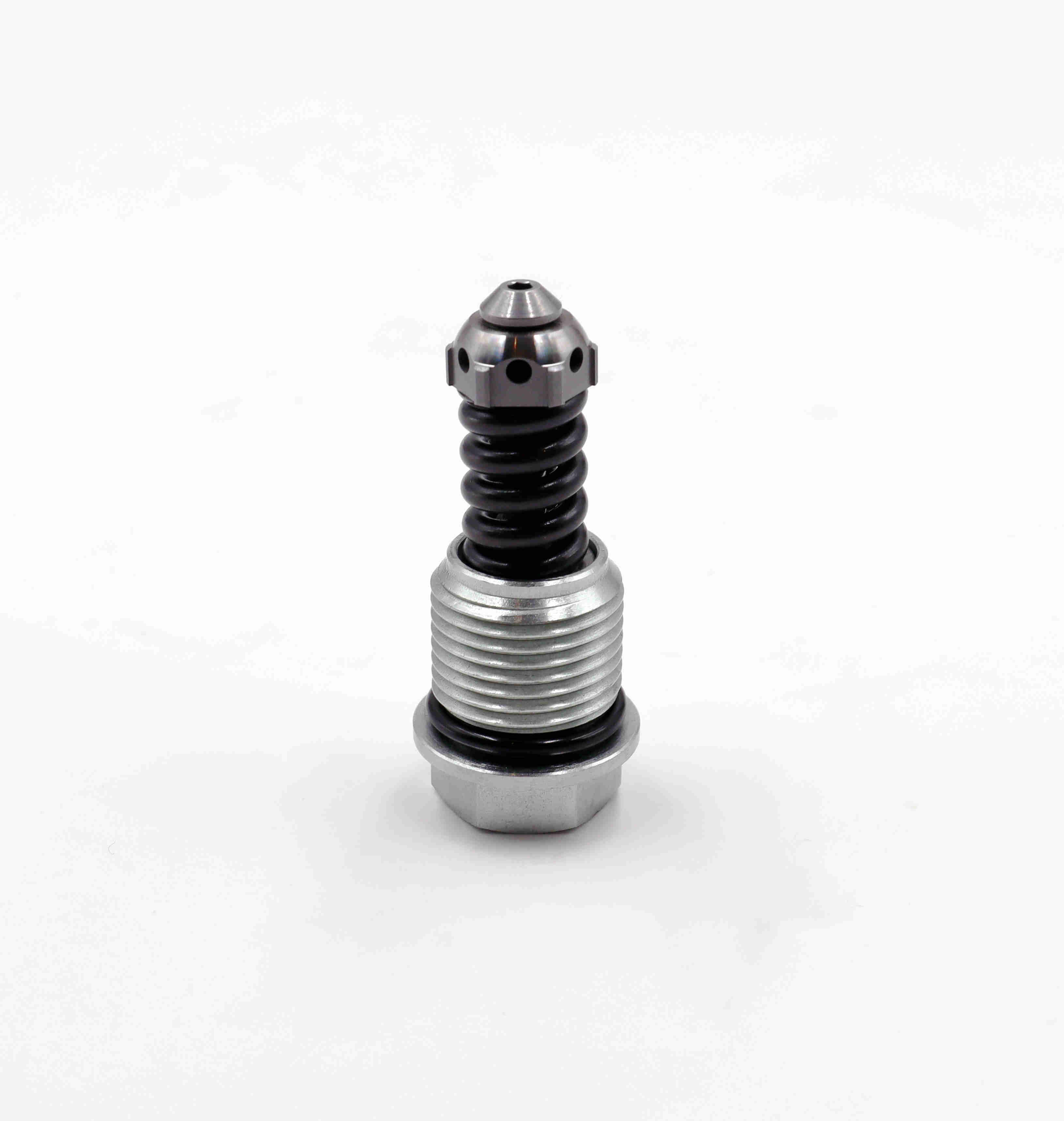

溢流閥DRV0M-18

名稱：

溢流閥

型號：

DRV0M-18

原理圖：

流量：

60L/min

壓力：

420bar

產品描述：

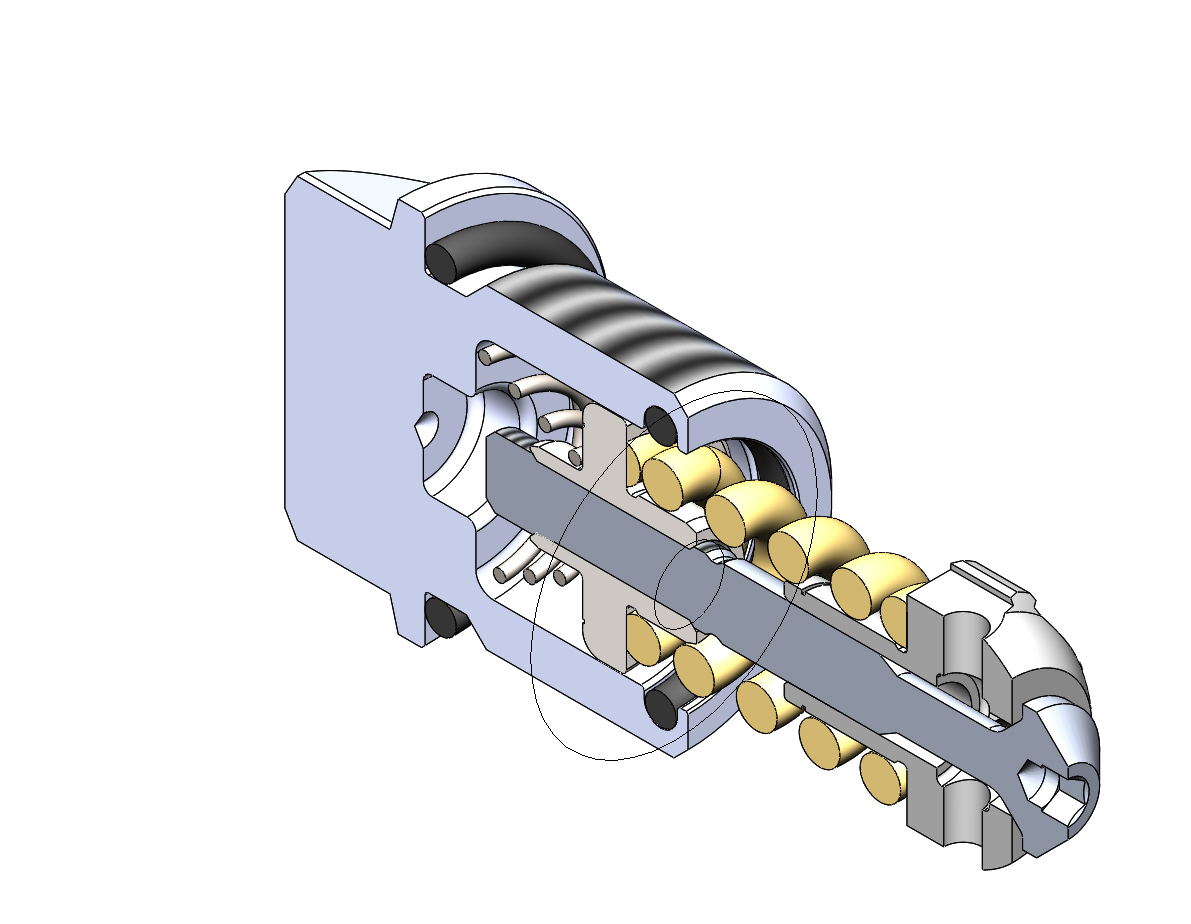

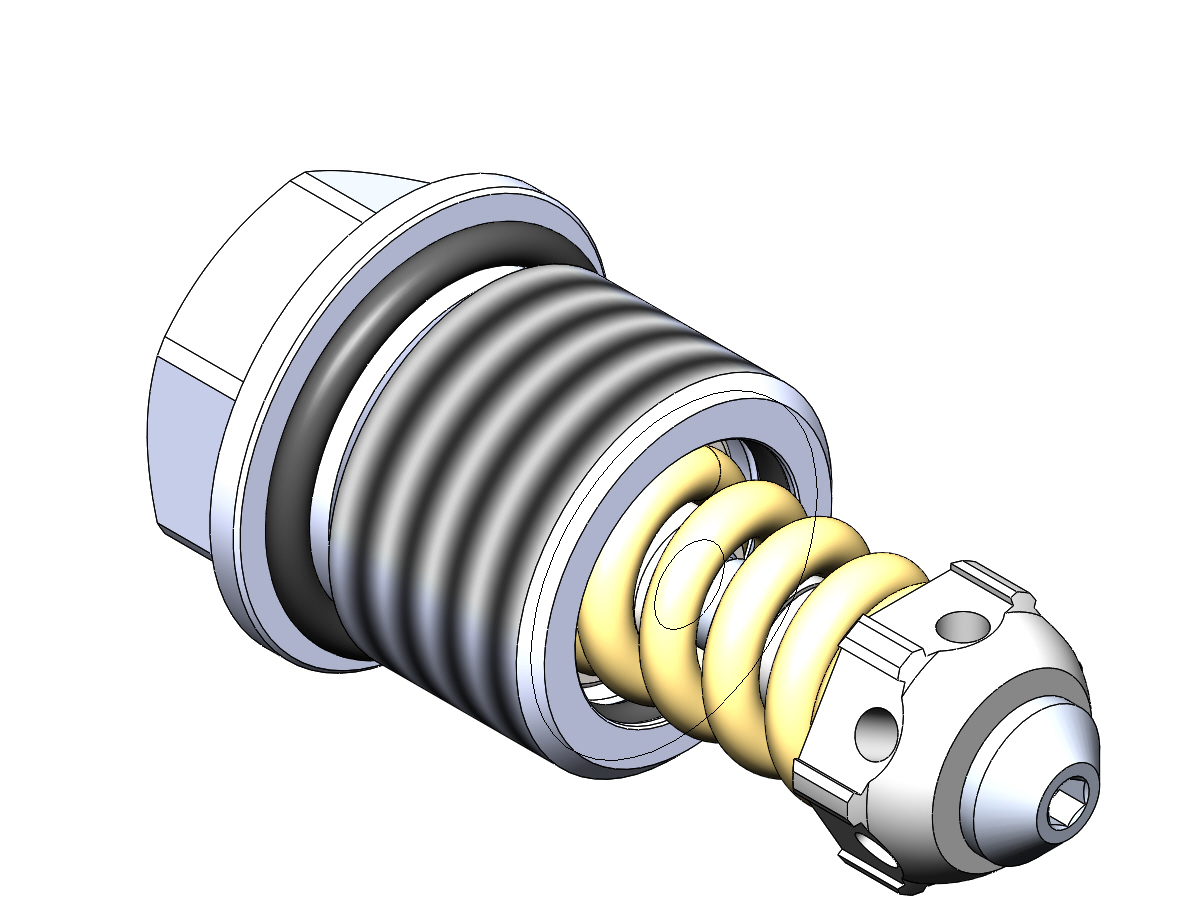

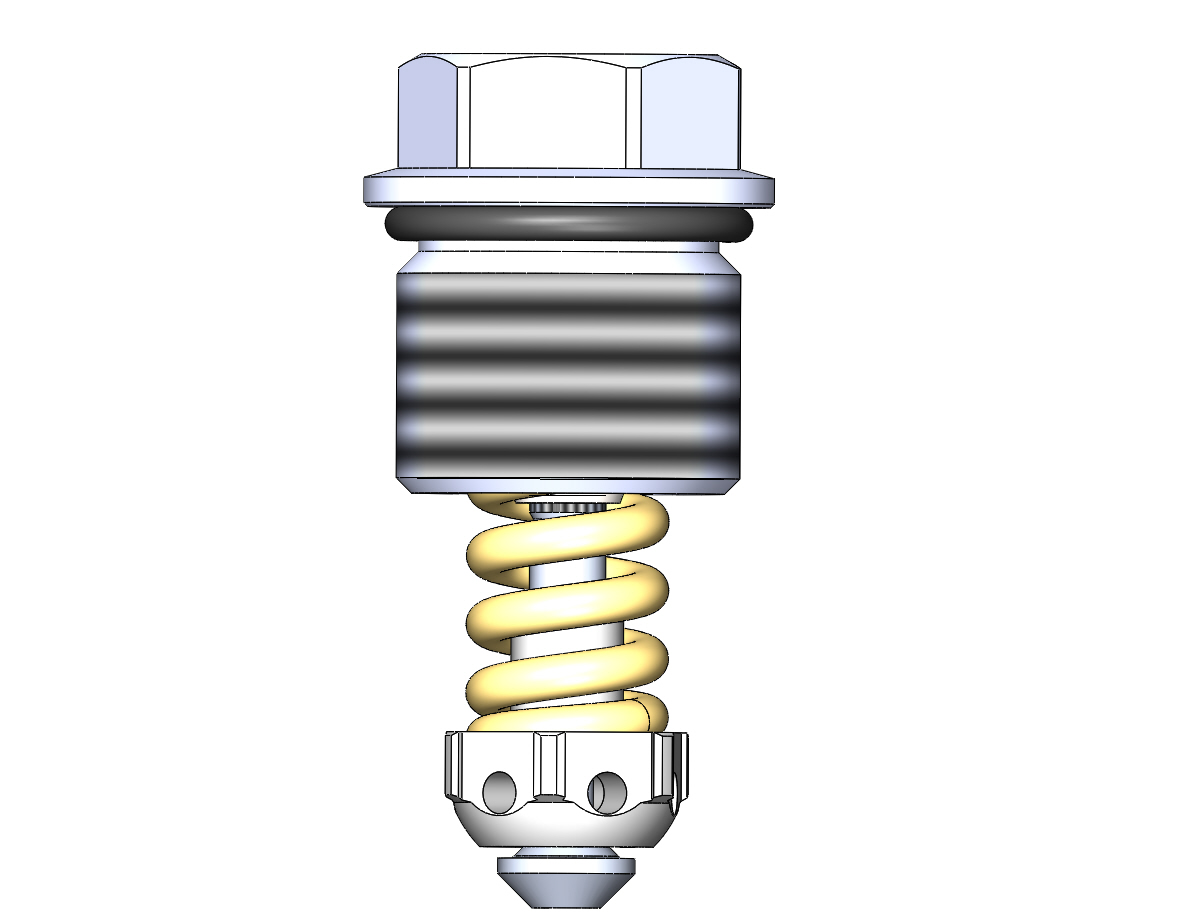

該閥在緊湊式螺紋插裝閥結合了減震閥和通過止回閥實現補油的典型功能。在壓力下的泄壓功能，它是通過一個側入式鼻排氣閥完成的，由于智能導流板設計實現非常低的壓力上升。當壓力在高壓端口（1）達到閥門設定，閥門啟動打開通往油箱端口（2）。在自由反向液流中一個非常輕的偏置彈簧允許液流易于從鼻端流通到側端（2 到1）。高精度加工保證快速響應負載變化，有限遲滯和減少內部和外部泄漏。 The valve combines in one compact insert cartridge the typical function of shock relief valve and anti-cavitation through the check valve. In the pressure relief function it’s a side-in nose-exhaust valve, with very low pressure rise thanks to the smart deflector design. When the pressure at the high pressure inlet(1) reaches the valve setting, the valve starts to open to tank (2). In the free reverse flow function a very light bias spring allows for ease of flow passage from nose to side (2 to 1). High precision machining guarantees quick response to load changes, limited hysteresis and reduced internal and external leakage.

資料下載聯系我們

產品優勢

錐閥經過熱處理硬化并經過精密加工，保證更低的內泄漏及更長的使用壽命。外部零件外表面都是經過鍍鋅處理和防腐蝕處理。所有零部件均采用高強度鋼材制造。結構緊湊、體積小。壓力由生產工廠設定，出廠后不可調節。可選的彈簧壓力范圍最大至420bar。

Poppet is hardened and ground to guarantee minimal wear and to extend service life. All external surfaces are zinc plated and corrosion-proof. All valve parts are made of high strength steel. Compact size. Pressure setting is pre-adjusted by the factory and cannot be changed. Optional spring ranges to 420 bar .

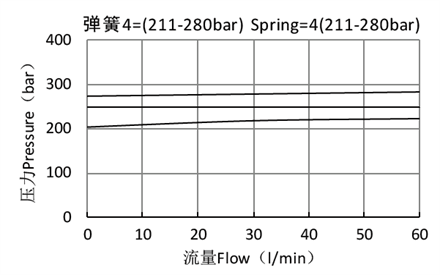

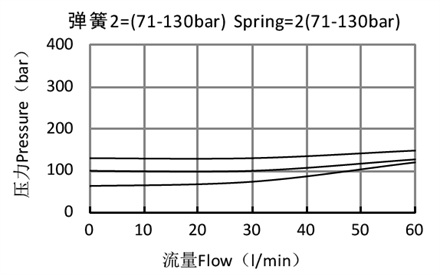

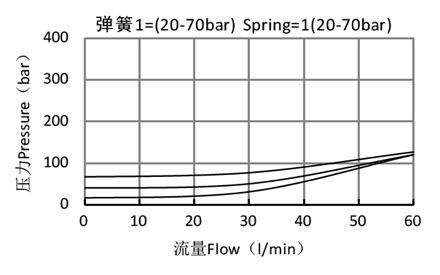

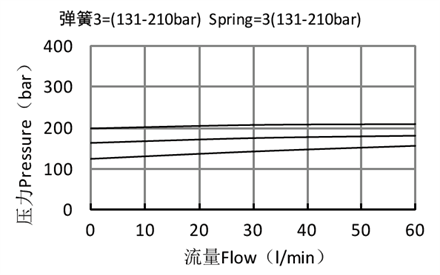

詳細參數

工作壓力Pressure rating	420bar

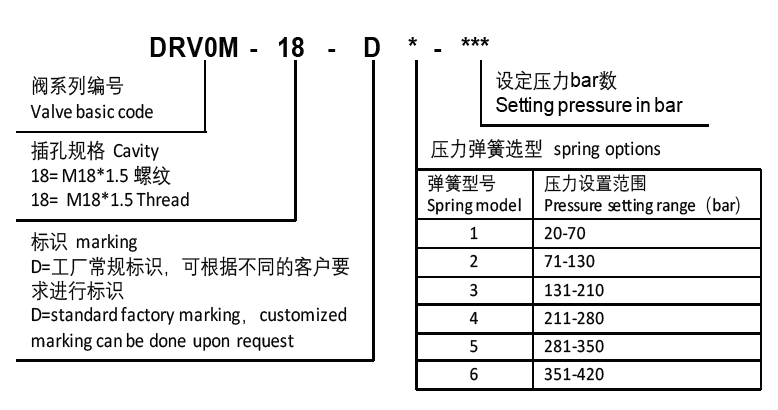

設置壓力 Setting pressure	查看訂貨選型表
最大流量 Maximum flow	60L/min
最大內泄漏量 Maximum internal leakage	1 cc /min @80%設定壓力 1 cc /min @ 80% nominal set point
外露零件表面處理要求External component treatment	Zn/Fe - standard Zn/Ni
安裝方向 Orientation	無限制 No restrictions
重量 Weight	0.06kg
適用油溫范圍 Oil Temperature Range	-30°C to 110°C
適用工作介質 Fluids	礦物油或具有潤滑性的合成油液 Mineral - based orsynthetics with lubricating properties
工作介質粘度范圍Viscosities	7,4 to 420 cSt
測試液壓油型號 Oil testing condition	ISO VG 46 cSt
過濾要求 Filtration	20/18/15 ISO 4406 (maximum filtration admitted)
安裝力矩 Installation torque	35-40 Nm（Hex.16）
單向閥開啟壓力Anti-cav cracking pressure	<0.5bar
設定壓力建壓流量Pressure settings established	1 L/min
復位壓力Reseat pressure	開啟壓力的90% nominal 90% of crack pressure
密封件代號 Seal kit code	SK.005
