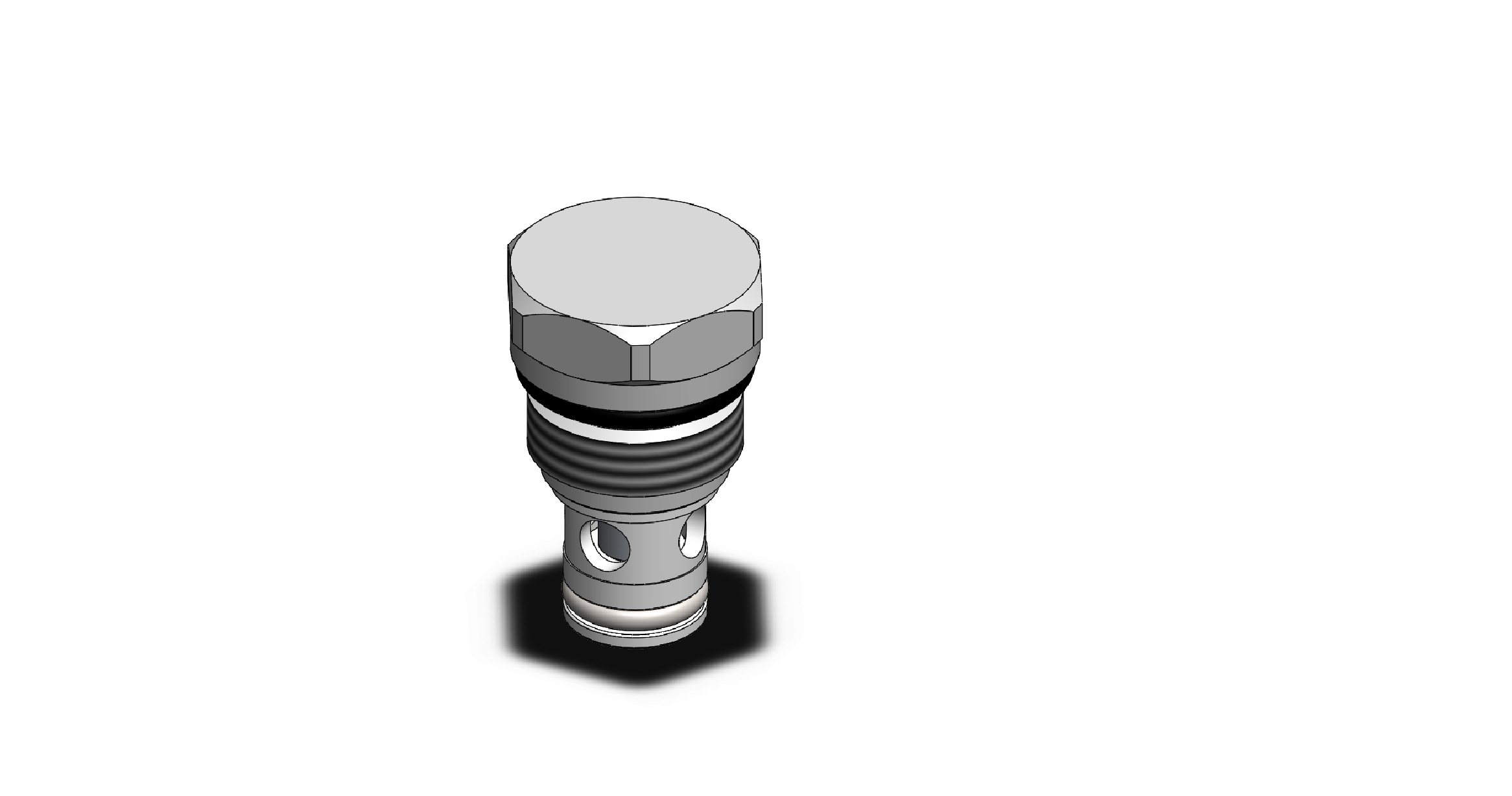

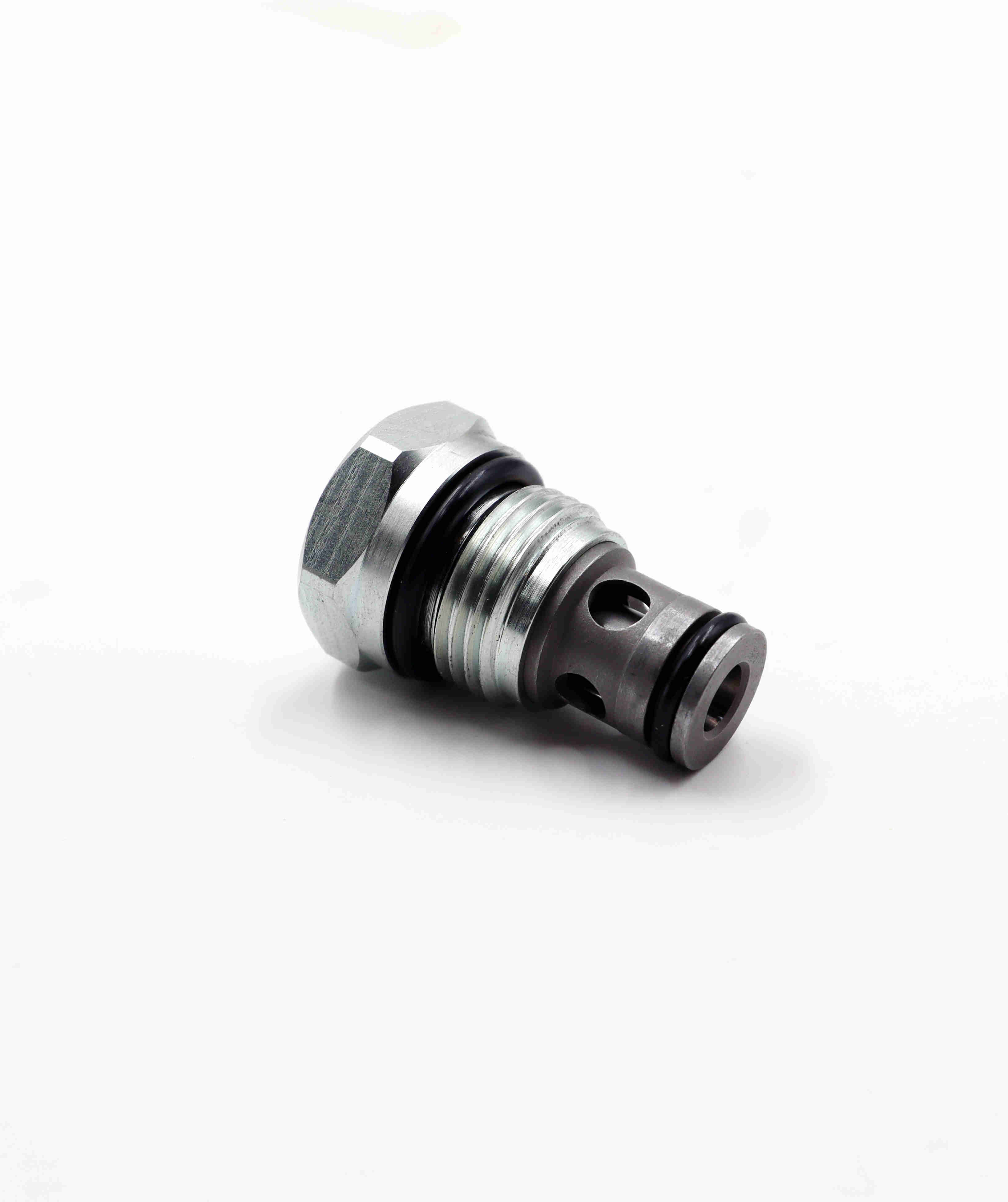

單向閥HTCV08U-C0A

名稱：

單向閥

型號：

HTCV08U系列

原理圖：

流量：

50L/min

壓力：

450bar

產品描述：

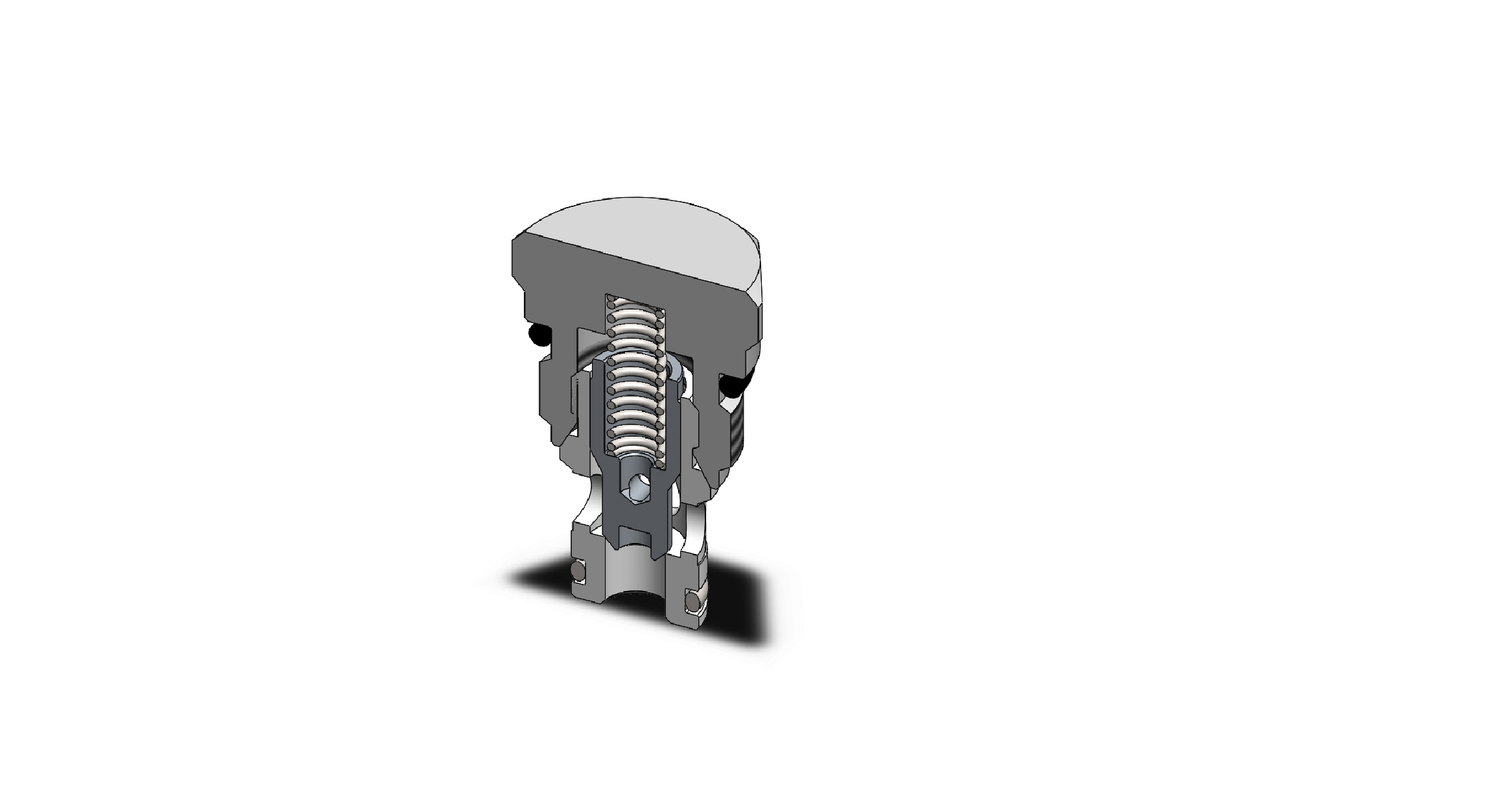

一種插裝式、直動式、提升型單向閥。主要用途是阻塞或負載保持裝置。該閥允許流通過端口 1 至 2：插裝閥具有全導向閥芯，偏置彈簧是關閉的，直到在端口 1 處施加足夠的壓力以打開到 2。油流在相反的方向上被阻擋（2 至 1） A screw-in, direct acting, poppet type check valve. Main use is as a blocking or load-holding device. The valve allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2. The flow is blocked in the opposite direction(2 to 1)

資料下載聯系我們

產品優勢

錐閥經過熱處理硬化并經過精密加工，保證更低的內泄漏及更長的使用壽命。外部零件外表面都是經過鍍鋅處理和防腐蝕處理。所有零部件均采用高強度鋼材制造。結構緊湊、體積小、采用通用標準插孔。

Poppet is hardened and ground to guarantee minimal wear and to extend service life. All external surfaces are zinc plated and corrosion-proof. All valve parts are made of high strength steel. Compact size. Industry common cavity.

詳細參數

工作壓力Pressure rating	350bar

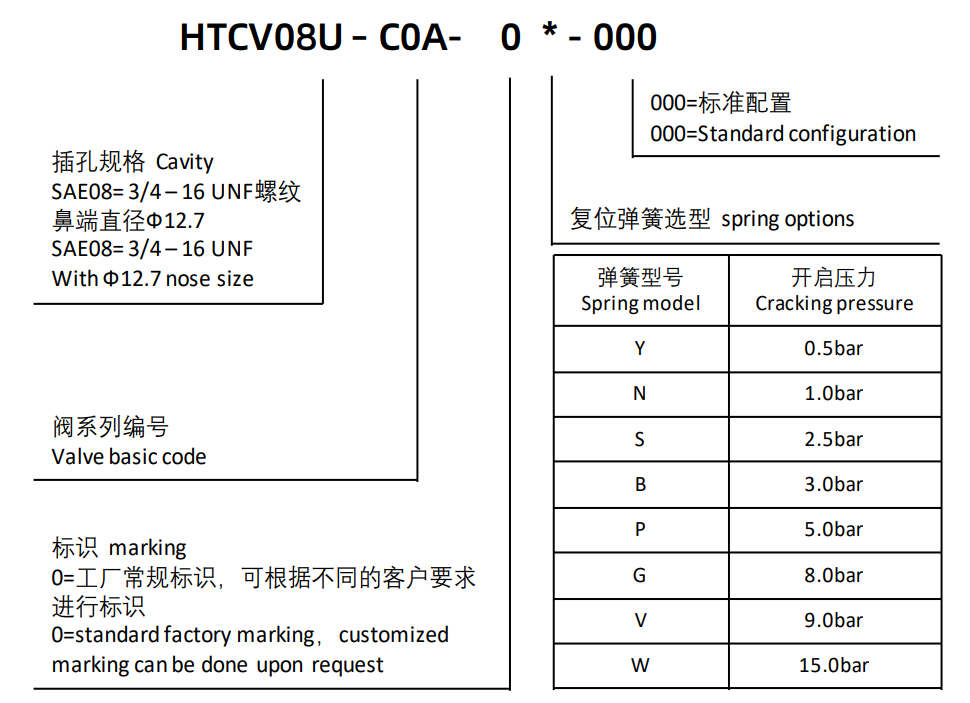

設置壓力 Setting pressure	查看訂貨選型表
最大流量 Maximum flow	50L/min
最大內泄漏量 Maximum internal leakage	0.10 cm3 / min @ 10 bar 0.10 cm3 / min @ 420 bar
外部組件處理 External component treatment	鋅/鐵標準 Zn/Fe - standard 鋅/鎳 Zn/Ni

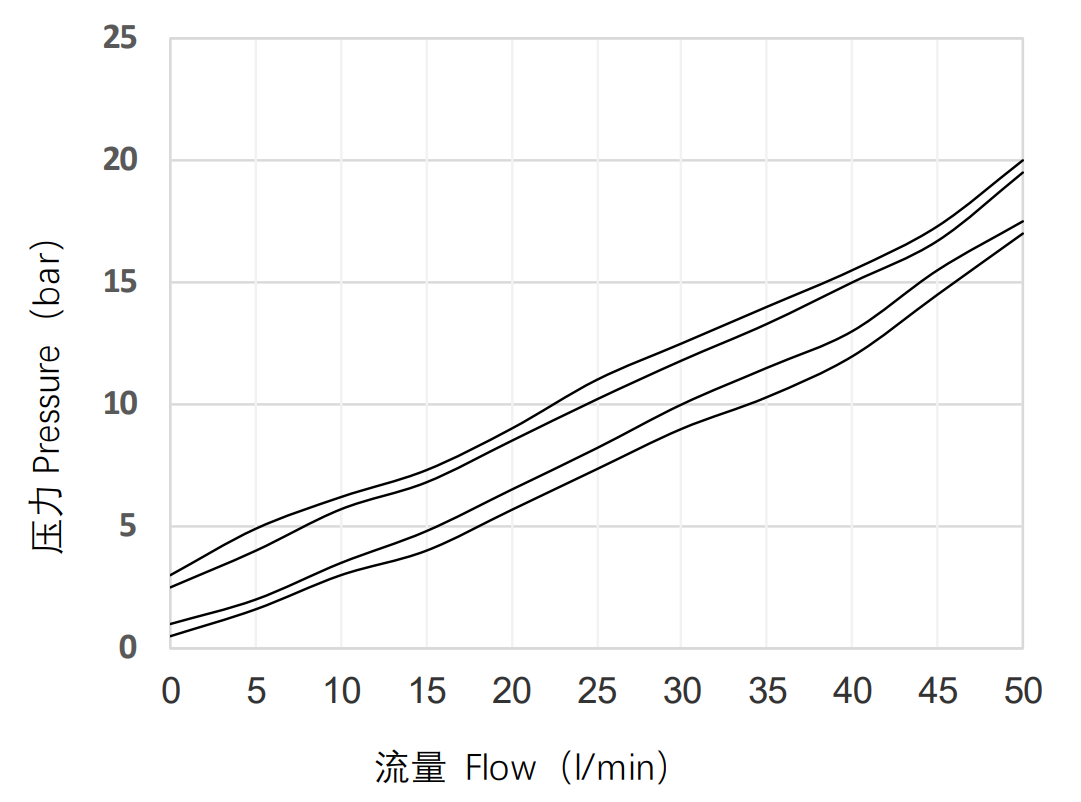

測試技術規范 Technical specification for characterization	見尾頁1-2 see the last page 1-2
油溫范圍 Oil Temperature Range	-30° C to 110° C
安裝方向 Orientation	無限制 No restrictions
重量 Weight	0.063kg
安裝扭矩 Installation torque	40-45 Nm,Hex.22
適用工作介質 Fluids	礦物油或具有潤滑性的合成油液 Mineral - based orsynthetics with lubricating properties
工作介質粘度范圍Viscosities	7,4 to 420 cSt
測試液壓油型號 Oil testing condition	ISO VG 46 cSt
過濾要求 Filtration	20/18/15 ISO 4406 (maximum filtration admitted)
插孔 Cavity	SAE08
